Glass Slide Related Errors: SP-50

Glass slide related errors: SP-50
Error Code	000074, 000075, 000076, 000083, 000084: After opening slide set unit cover and replenishing glass slide, close the cover. 000077, 000078, 000079: Out of glass slides (left, right).
Symptom	Error message is not executable.
Possible Causes	The slide supply cassette (right) or (left) is out of glass slides. The slide glass holder is not properly set.
Refining Problem Area	Remove supply cassette and ensure there is no slides. When executing the error, are there any noises or sounds coming from the analyser? Are there any broken slides visible?

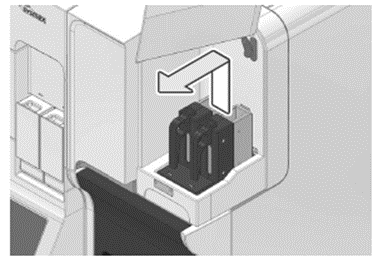

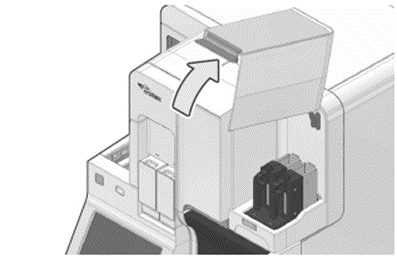

Action	Remove glass slide holder and fill with glass slides. Loading Glass Slides 1. Open slide set unit cover. 2.  Remove slide supply cassette from slide set unit. 3. Remove slide supply cassette guide. 4. Load new glass slides. 5. Install slide supply cassette into original position and close slide set unit cover.
