Vacuum related help: XN-L

Vacuum related help: XN-L
Error Code	Vacuum related help: XN-L: -0.03 MPa pressure error
Symptom	Error message appears on the screen. Functions of the analyser are not running optimally. Waste chamber draining errors.
Possible Causes	Blockage in vacuum system. Water has accumulated in pneumatic trap chamber on the top left hand corner of the analyser. -0.03MPa relief valve has malfunctioned.
Refining Problem Area	Record the current ‘-0.03MPa’ value. What functions of the analyser are not running optimally? Are there any air leakage noises present?

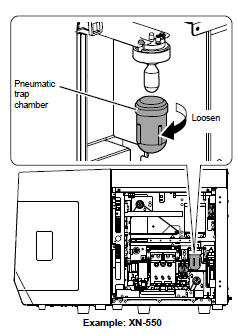

Action	Touch [Execute] in the help dialog. An air pump test is executed. Drain the pneumatic trap chamber. How to drain Pneumatic Trap Chamber 1. Touch [Menu] button on toolbar. 2. Touch [Shutdown] icon. 3. Touch [OK] 4. Turn OFF the main power switch. 5. Open right cover 6. Turn the pneumatic trap chamber in the direction of the arrow to remove. 7. Dispose of water in the chamber. 8. Remove the float, and insert into the pneumatic trap chamber. 9. Turn the pneumatic trap chamber in the direction opposite to that in step 6 to attach. 10. Close the right cover and lock. 11. Turn ON the main power switch. 12. Press the power switch.
